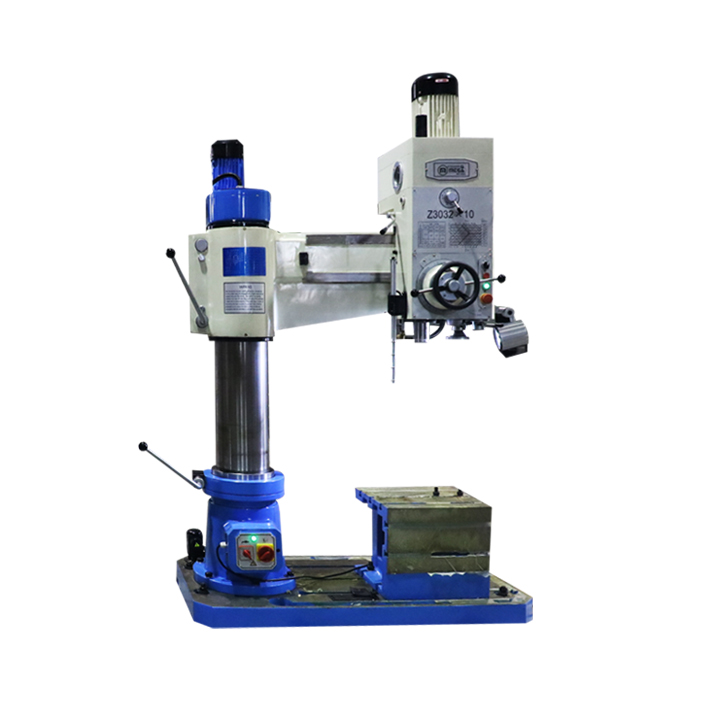

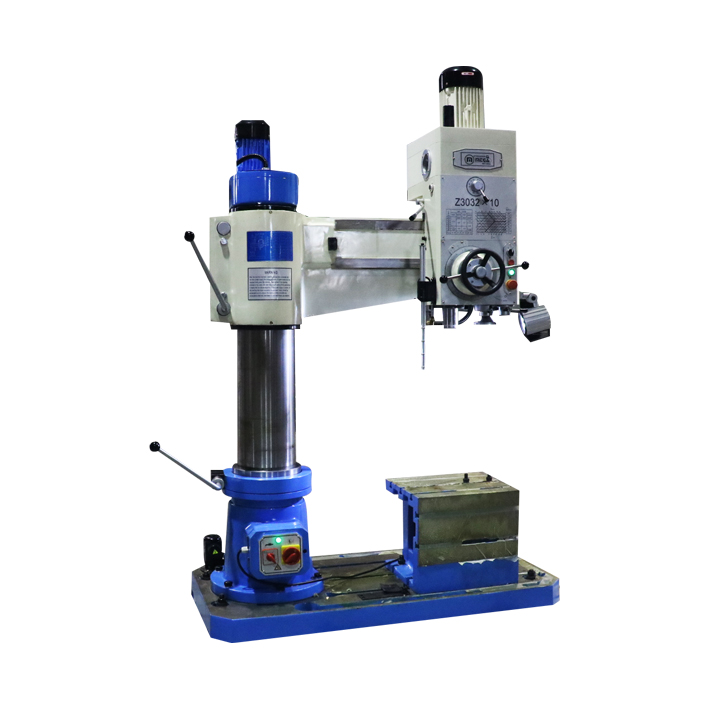

แท่นเจาะรัศมี / Radial Machine Model STZ3032x10

Specification
ST-Code : H01-0054
Model : STZ3032x10
แท่นเจาะรัศมี
Max.Drilling capacity (mm) : 32
Max. tapping capacity (mm) : (cast iron) 20 (steel) 16
Distance spindel axis to column generating line (mm) : 300-1000
Diameter of column (mm) : 150
Spindle taper (mm) : MT4
Spindle travel (mm) : 280
Spindle speeds range (r/min) (mm) : 32-2500
Spindle speeds series (mm) : 8
Spindle feeds (mm/r) : 0.10-1.25
Rotary angle of rocker in horizontal plane (mm) : 360
Distance spindel nose to working surfacr to base (mm) : 220-1000
Dimension of worktable (mm) : 350x350x350
Dimension of base (mm) : –
Dimension of size (mm) : 1760x800x2050
Power of main motor (W) : 2200/380v
G.W/ N.W. (KG) : 1600;2200
Packing Dimension (mm) : 2050 x 1070 x 2190
