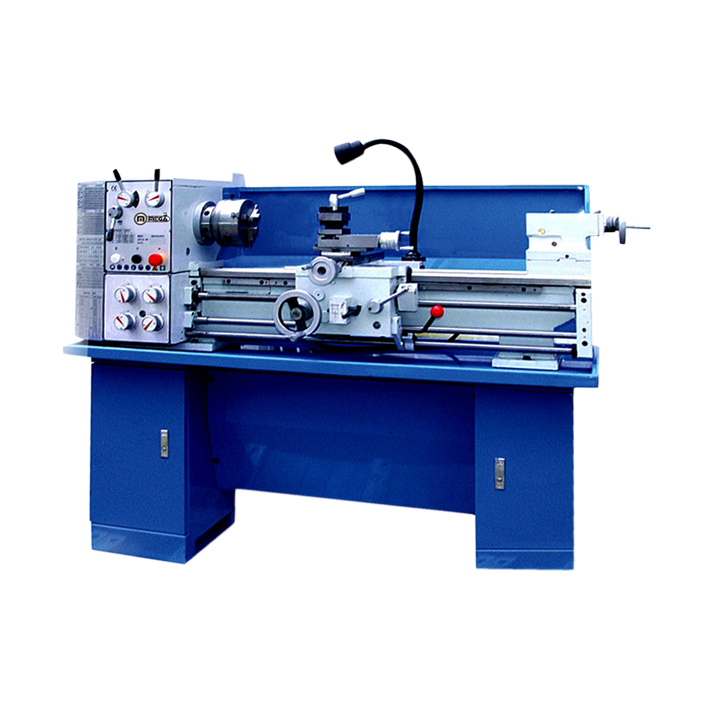

เครื่องกลึง 1000mm. 220V.
Max.swing over bed [mm] : 330 mm.
Max.swing over cross slide [mm] : 195 mm.
Max.swing over gap : 476 mm.
Distance between centers : 1080 mm.
Spindle bore : 38 mm.
Taper of spindle bore : M.T.#5
Rang of spindle bore : 65-1810 rpm
Rang of longitudinal feeds : 0.0527-1.2912 mm/rev
Rang of cross feeds : 0.014-0.3448mm/rev
Rang of metric threads : 0.4-7 mm
Rang of inch threads : 4-60 TPI
Taper of tailstock bore : M.T.#3
Power of motor : 1.1kw.3HP/380v 1.5kw.1 HP/220V.
Width of bed-way : 182
Step of speed : 9 Steps
Head nose : D1-4
Diameter lead screw [mm] : 22[7/8″]
Pitch of lead screw [mm] : 3 or 8 TPI
Saddle Travel [mm] : 1000
Cross travel [mm] : 170
Compound travel [mm] : 90
Barrel travel [mm] : 100
Barrel diameter [mm] : 32
Taper of canter : MT3
Machine [LxWxH] [mm] : 1920x760x760
Main Machine [N.W./G.W.] [kg.] : 510
Machine stand [N.W. / G.W.] : 70
