Speocification
ST-Code : H01-0139
Model : DIY0538

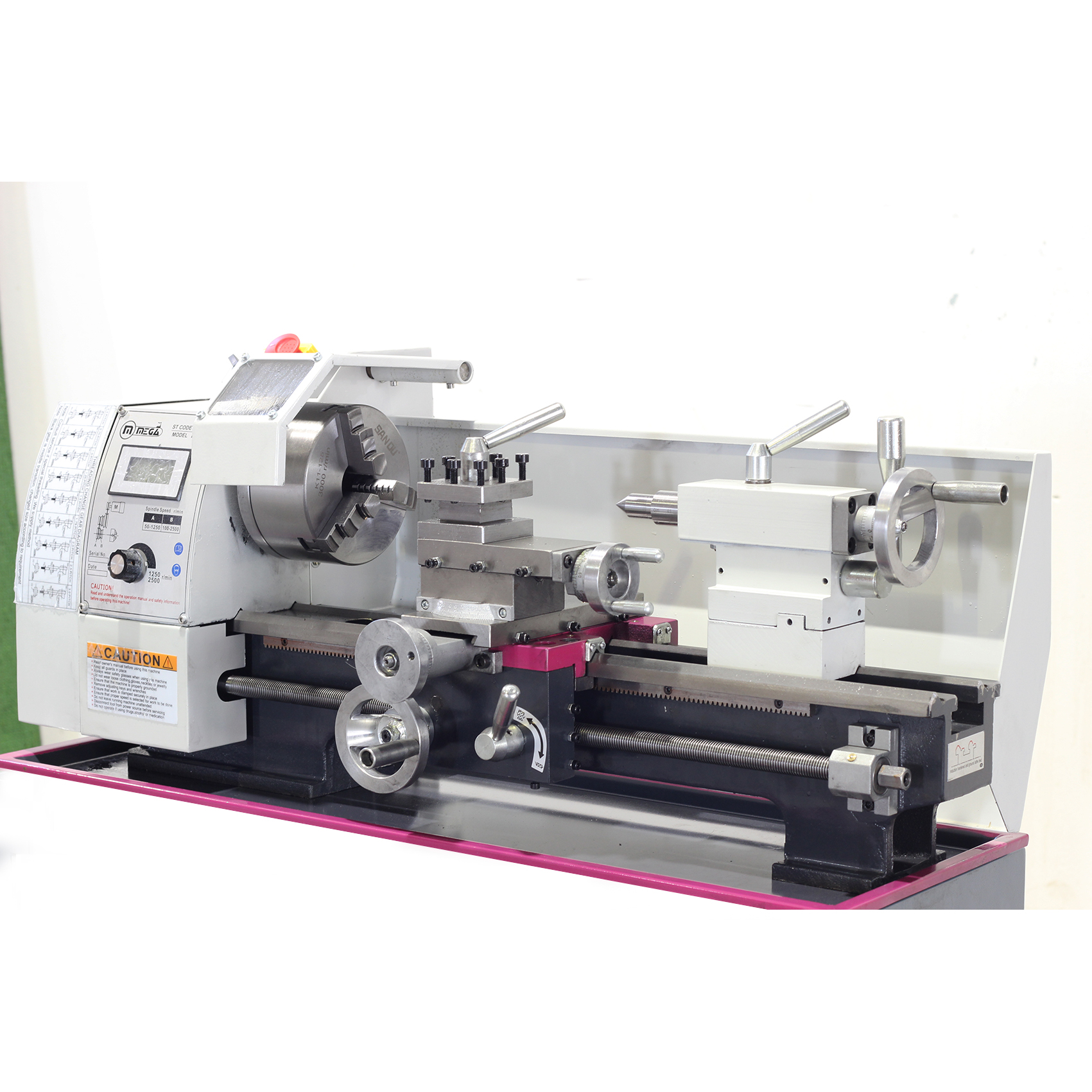

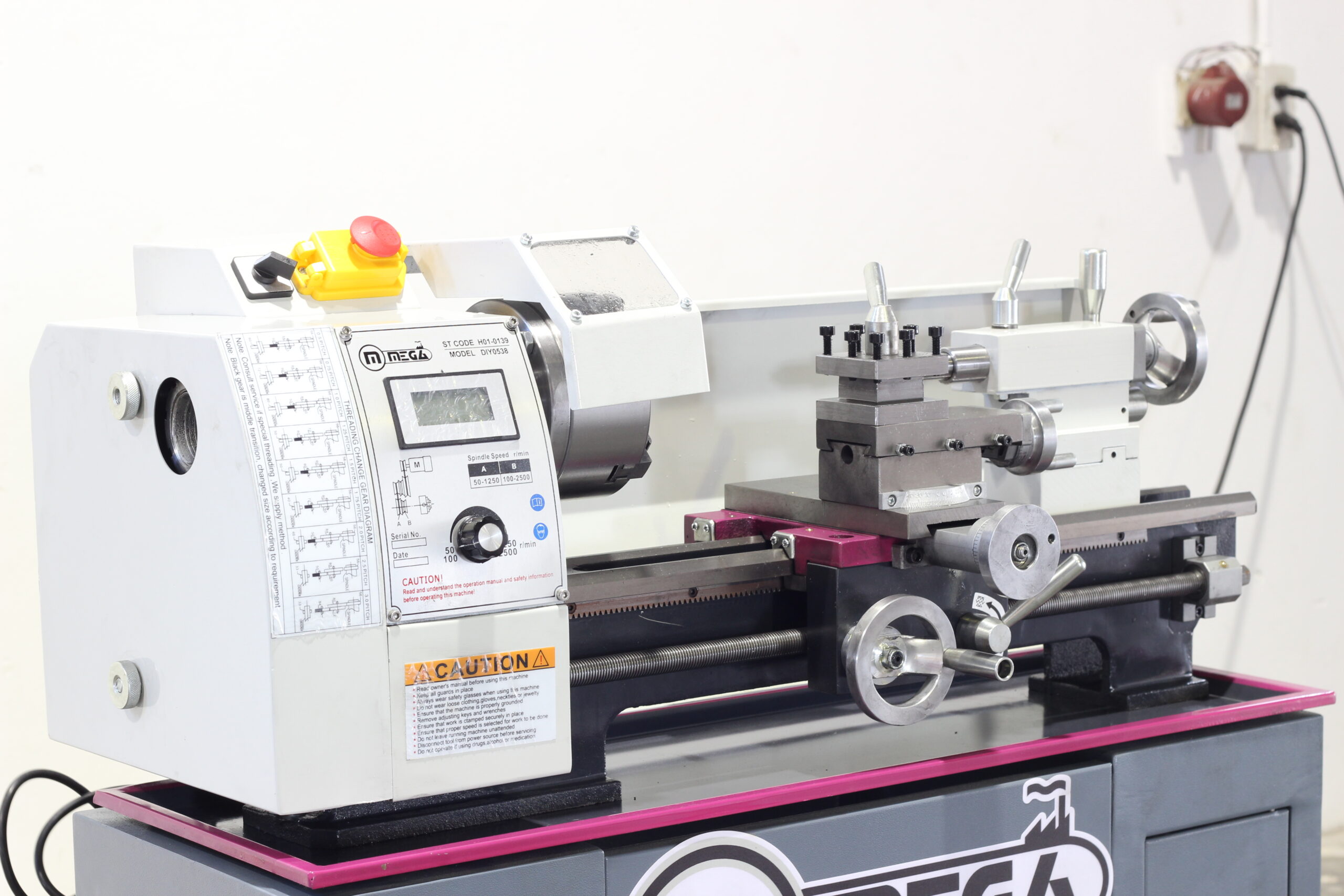

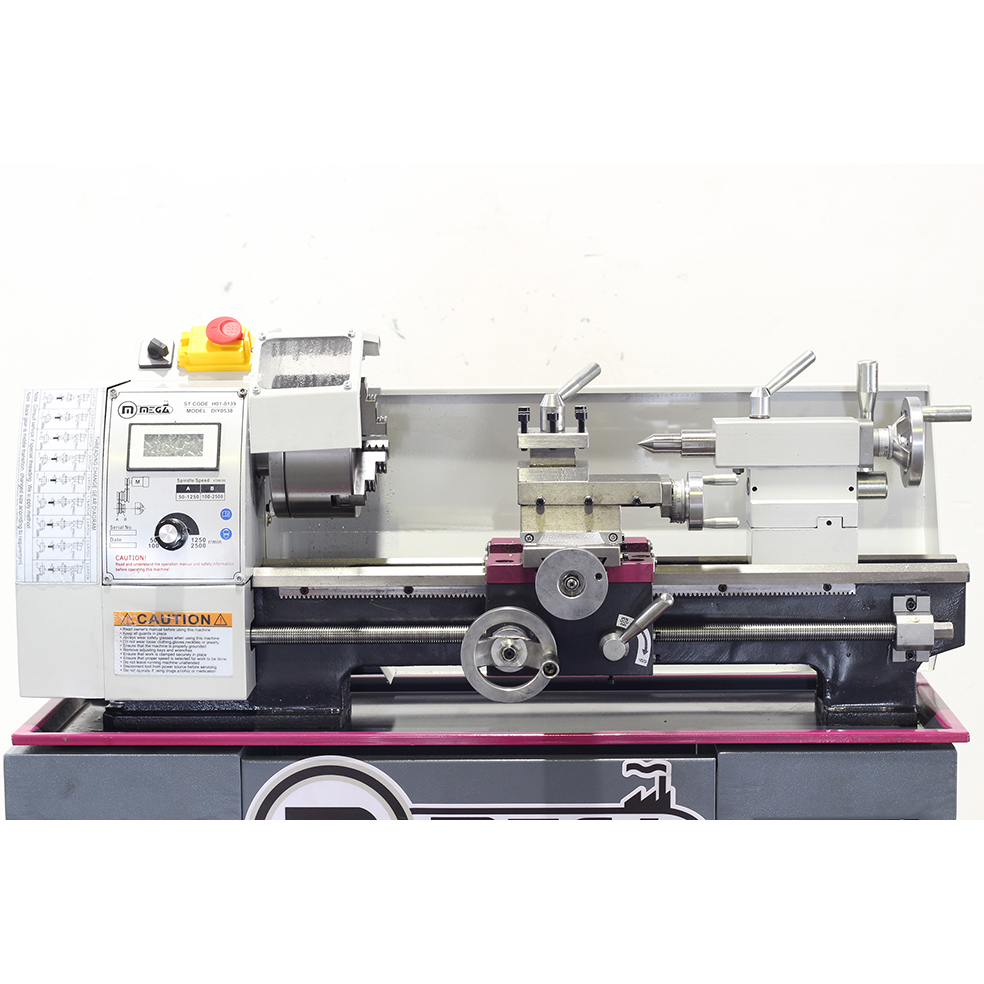

เครื่องกลึง
Swing Over Bed :210mm
Swing Over Cross Slide :110mm
Distance Between Centers :400mm
Width of Bed :100mm
Headstockt
Hole through Spindle :38mm
Taper in Spindle Nose :MT3
Number of Spindle Speeds :Variable
Range of Spindle Speeds :50-2500RPM

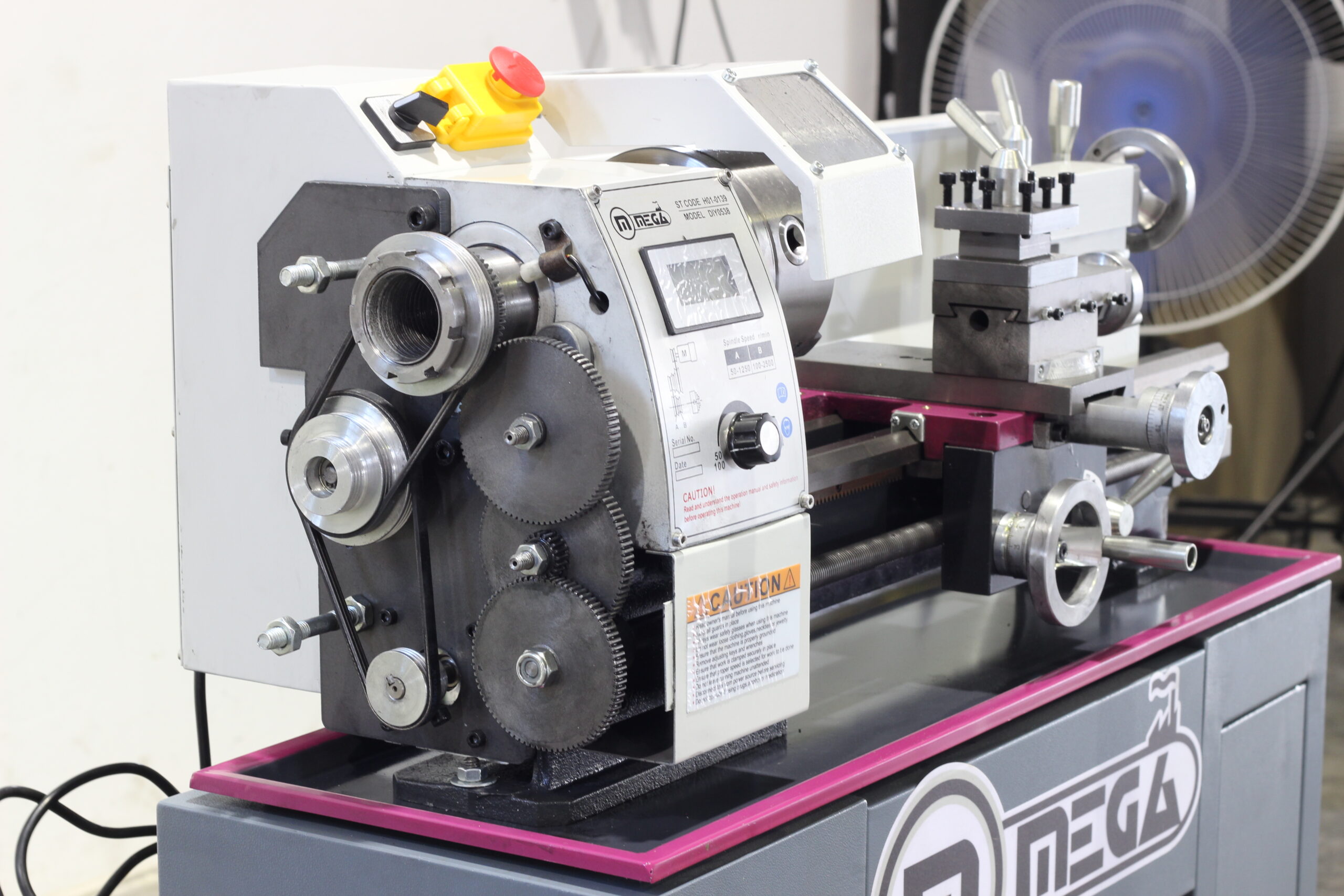

Feeding and Threading
Number of Metric Threads :10
Range of Metric Threads :0.5-3mm
Number of Imperial Threads :8
Range of Imperial Theades :8-44 T.P.L.
Range of Longitudinal Feed :0.1-0.2mm

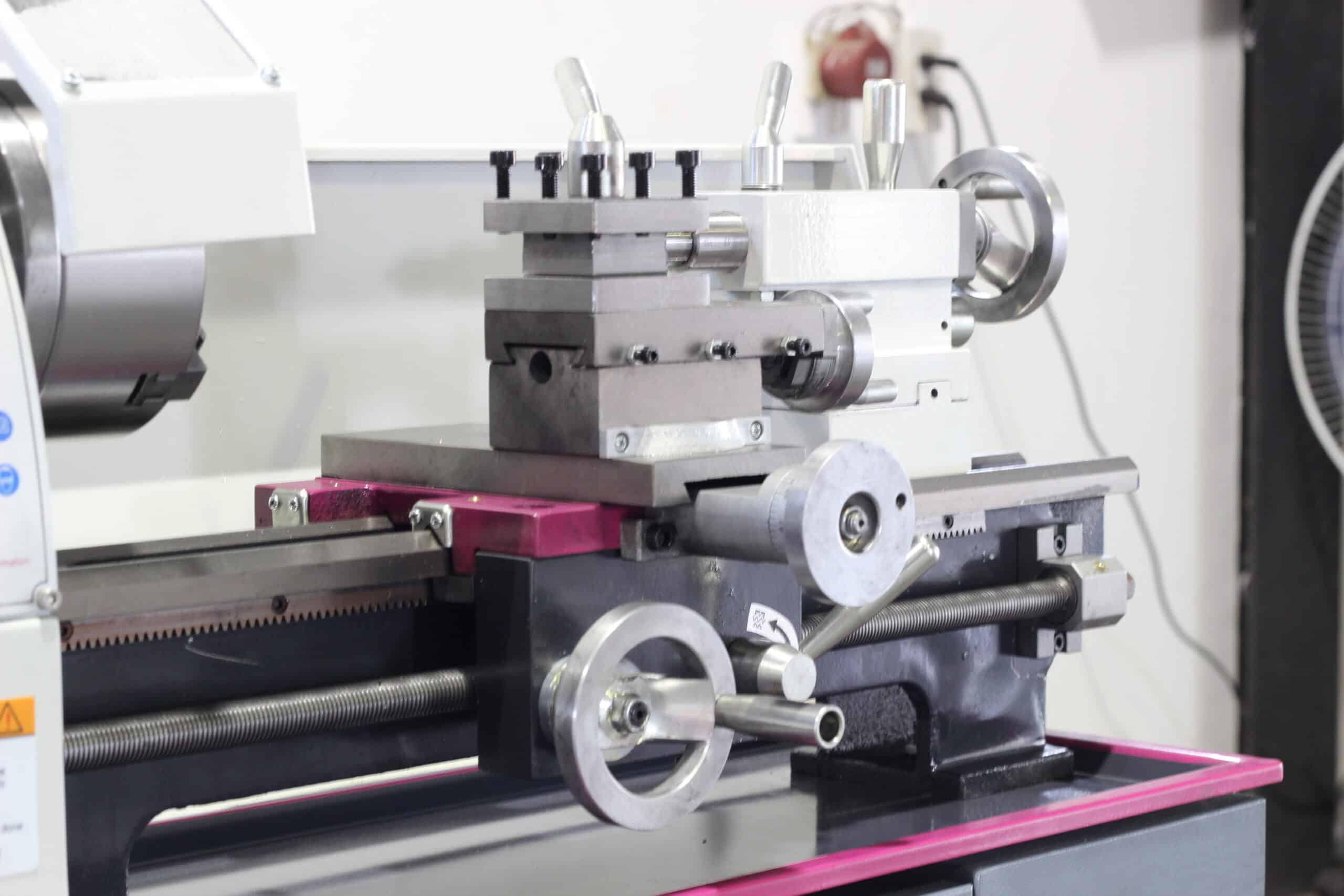

Compound and Carriage
Tool Post Type :4-Way
Maximun Compound Slide Travel :55mm
Maximun Cross Silde Travel :75mm
Maximun Carriage Travel :276mm

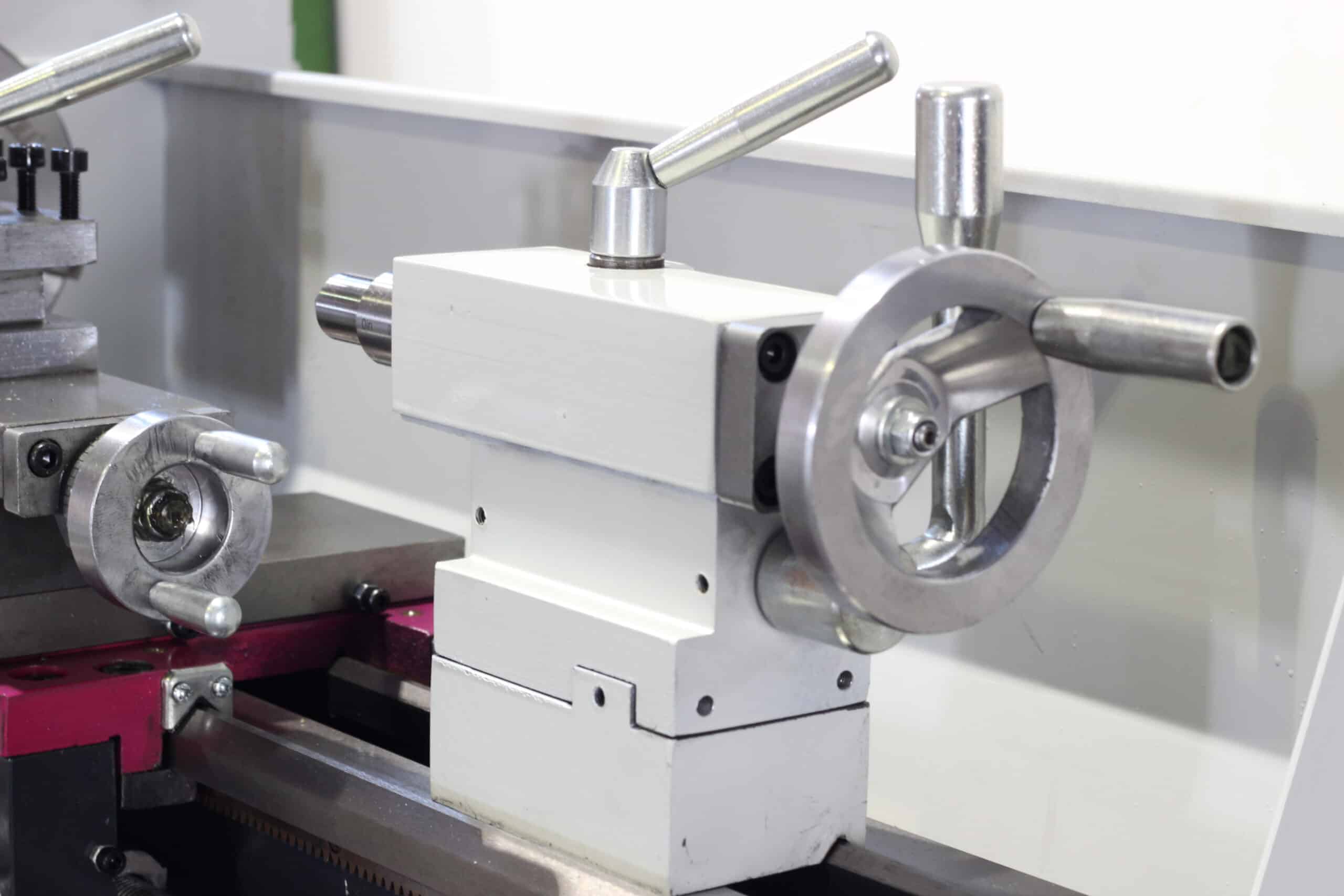

Tallstock
Tallstock Spindle Traval :60mm
Taper in Tallstock Spindle :MT2
Miscellaneous
Main Motor :750w,230v/1Ph/50Hz
Dimension :
Length :740mm
Width :390mm
Height :370mm
Weight :65KGS
